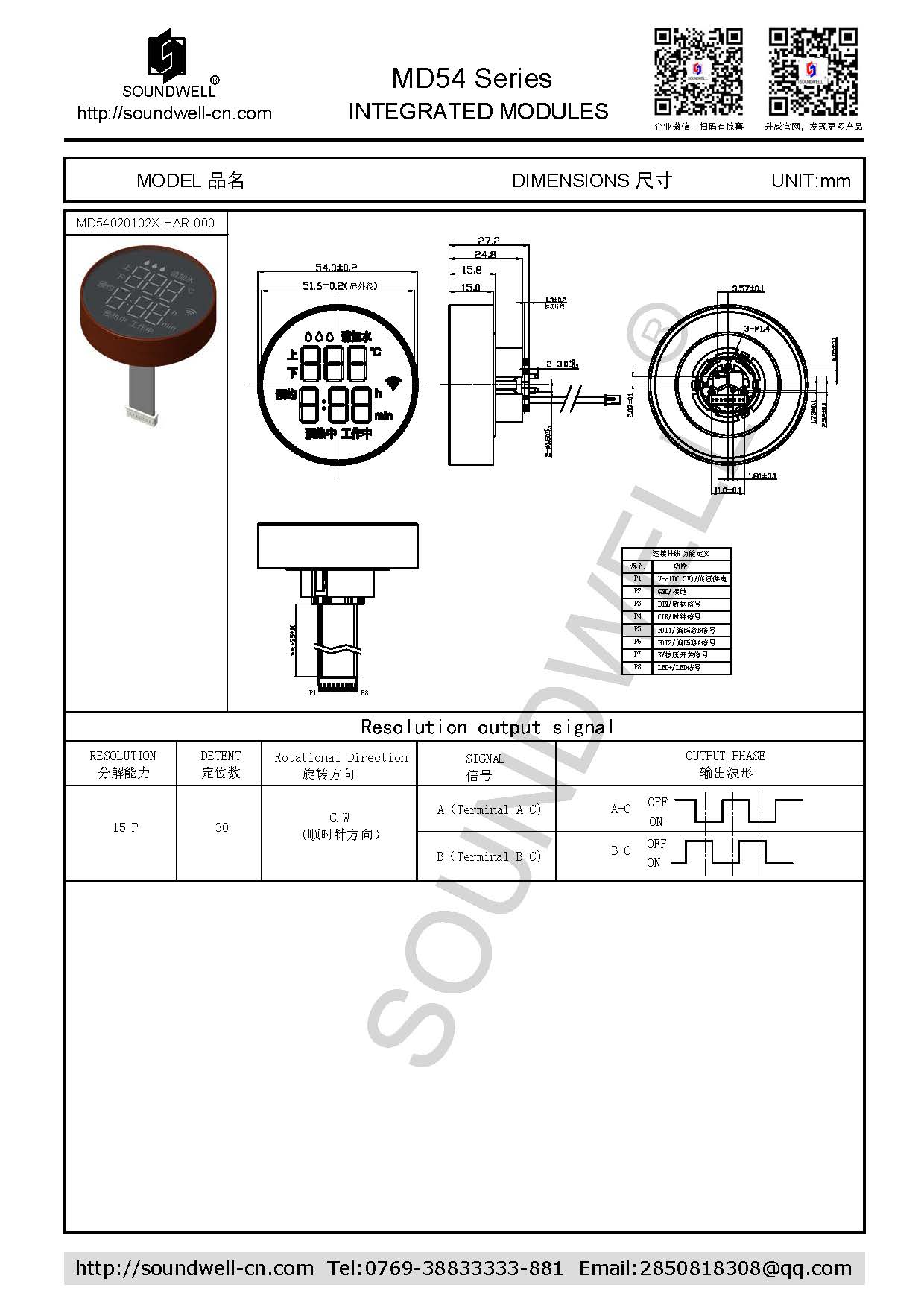

MD54 Encoder Module with Digital LED Display
|
Module model： |
MD54 series |
|
| Applications： |
Steaming and baking machine, household appliances and other electronic products; |
|
| Product Features: |
Multifunctional knob module that integrates digital tube display, rotation and pressing; |
|
| Main Specifications: |
Dimensions: 54mm; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 15±7mN.m
2. Total rotational angle: 360°
3. Number of detent: 30
4. Press switch travel: 1.3±0.2mm
5. Switch operating force: 250±80gf
TWO、ELECTRICAL CHARACTERISTIC
1. Insulation resistance: 100M?
2. Dielectric voltage: 1 Minute at AC 300V
3. Pulses: 15
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
2. Press switch life: 30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
